Peace of mind

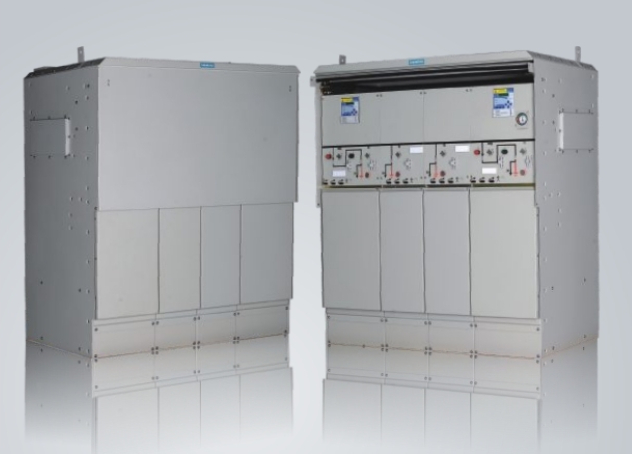

• 1. Gas insulated, metal enclosed, indoor/outdoor, Extensible/non- extensible factory assembled type tested switchgear as per new IEC 62271-J 00/200.
• 2. Stringent quality standards as per ISO9001 and J 4001.

Saves Lives

• 1. Internal arc fault tested switchgear including cable compartment.
• 2. Capacitive voltage detection system for verification of safe isolation from supply.

Increases Productivity

• 1. All switching operations and cable access from the front.
• 2. Safe to touch and hermitically sealed, gas tight, welded stainless steel primary enclosure, independent of environmental effects (dust, moisture, vermins etc.)
• 3. Extensible on either sides.

Saves Money

• 1. Single switching element for load breaking, disconnecting and earthing.
• 2. Maintenance free operating mechanism accessible outside the high voltage enclosure.
• 3. Most compact individual panel/ block type construction, ensuring minimum space requirement.

Design and Construction

• 1. Ring feeders with three position switch disconnectors (option: with auxiliary switch).
• 2. Circuit breaker feeder with combined Vacuum interrupter Dis-connector and earthing switch.
• 3. Capacitive voltage detection system for all feeders.
• 4. Protective self-powered relay & current transformers for transformer protection.
• 5. Individual panel / block type construction.
• 6. Manual operating mechanism (option: with motor).
• 7. Cable connection from front.
• 8. Logical mechanical interlocks.
• 9. Gas pressure monitoring via Manometer.

Options:

• 1. Short circuit I earth fault indicators for ring feeders.


• 2. Shunt release for VCB feeders.


• 3. Motor-operated ring & VCB feeders.


• 4. Local/remote selector switch for motorized feeders.


• 5. Provision for two runs of cable connection max Up to 3Cx300 sq.mm.

Technical Data
